Customized Special Purpose Transformers For Industrial, Mining And Railway Power Supply Needs
Yulan Transformer designs and manufactures special purpose transformers engineered for specific industrial processes where standard power transformers cannot meet the electrical, thermal, or mechanical demands. Our special purpose transformer portfolio includes furnace transformers, rectifier transformers, and custom-engineered units for steel mills, metallurgy plants, electrochemical facilities, and power electronics systems.
Furnace transformers are designed for electric arc furnace (EAF) and ladle furnace (LF) applications in the steel industry. These units feature high secondary current, low secondary voltage, and robust construction to withstand the cyclic thermal and mechanical stresses of arc furnace operation. Typical ratings range from 5 MVA to 120 MVA, with secondary voltages from 100V to 1,500V.
Rectifier transformers supply power to rectifier systems in electrochemical processes, DC arc furnaces, and variable speed drive (VSD) applications. These transformers are designed with phase-shift windings to reduce harmonic distortion, and with multiple secondary windings for 6-pulse, 12-pulse, or 24-pulse rectifier configurations. They are commonly deployed in aluminum smelting, chlor-alkali production, and large DC power supply systems.
Custom special purpose transformers we manufacture include: earthing/grounding transformers, traction transformers for railway electrification, induction heating transformers, and voltage regulator transformers. Each unit is custom-designed to project specifications, including impedance, harmonic withstand capability, and cooling requirements.
All special purpose transformers are manufactured using the same production infrastructure as our power transformers — 400kW KVPD drying systems, computer-controlled winding machines, and 1200kV impulse test capability — ensuring consistent quality across all product lines. For reactive power compensation in furnace and rectifier installations, we also supply magnetically controlled reactors.
Frequently Asked Questions
What types of special purpose transformers does Yulan manufacture?
Yulan Transformer manufactures furnace transformers, rectifier transformers, earthing/grounding transformers, traction transformers, induction heating transformers, and custom-engineered industrial transformers.
What industries use special purpose transformers?
Our special purpose transformers serve steel mills, metallurgy plants, aluminum smelting facilities, electrochemical plants, railway electrification projects, and variable speed drive applications.
Can Yulan custom-design a transformer for a specific application?
Yes. Yulan Transformer provides custom design and development for transformers with specific impedance, harmonic withstand capability, cooling requirements, and secondary voltage/current configurations.
| Type | Application | Typical Rating |
|---|---|---|
| Furnace Transformer | Electric Arc Furnace (EAF/LF) | 5–120 MVA |
| Rectifier Transformer | Electrochemical / DC Supply | Custom |
| Earthing Transformer | System Grounding | Custom |
| Traction Transformer | Railway Electrification | Custom |
| Induction Heating Transformer | Induction Furnace / Heating | Custom |
- View as

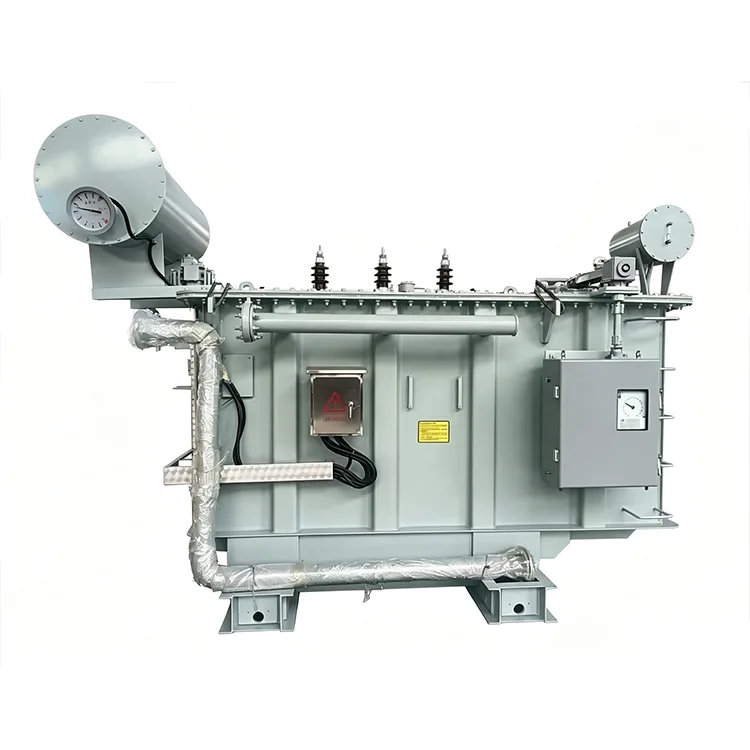

Ladle Furnace Transformer
Yulan Transformer supplies Ladle Furnace Transformers from 1,000 kVA to 80,000 kVA for steelmaking and secondary metallurgy. Designed for frequent power adjustment and stable arc heating, they offer customized voltage, tap ranges and cooling systems. Request a quote, get technical details, or discuss your project.
Ladle Refining Furnace Transformer
For secondary steel refining and precise temperature control, Yulan Transformer supplies Ladle Refining Furnace Transformers from 1,000 to 80,000 kVA. Primary voltages cover 6–110 kV, with customized secondary voltage and tap settings. Source reliable units, get pricing, or request a custom design.

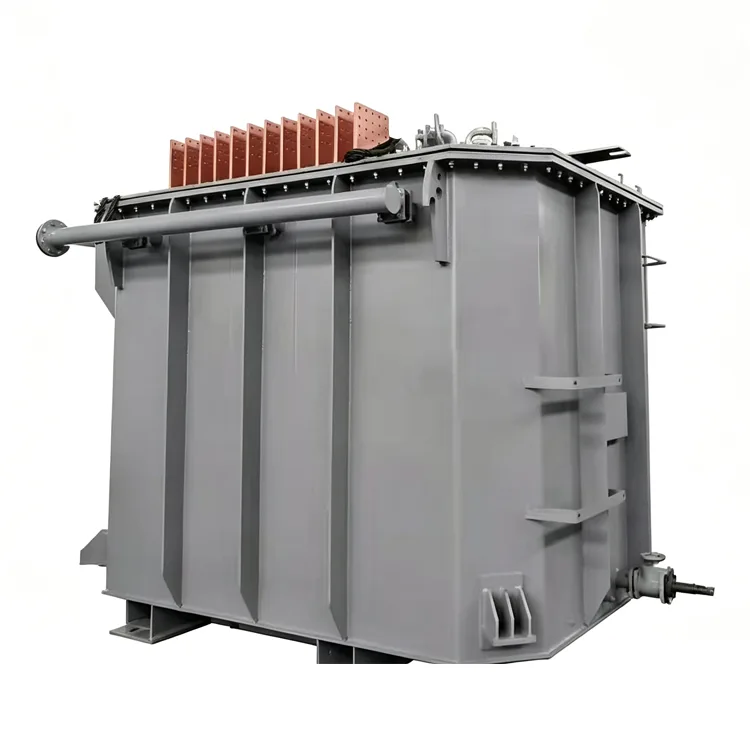

Submerged Arc Furnace Transformer
Yulan Transformer offers submerged arc furnace transformers with rated capacities ranging from 1,000 kVA to 80,000 kVA, designed for ferroalloy, calcium carbide, and industrial silicon smelting processes. This product series supports primary voltages of 6–110 kV, high secondary currents, flexible voltage regulation, and forced cooling capabilities. We invite you to request a quote, review technical specifications, or discuss your specific requirements.
Submerged Arc Furnace Power Transformer
Yulan Transformer supplies Submerged Arc Furnace Power Transformers from 1,000 to 80,000 kVA for ferroalloy, calcium carbide, and industrial silicon production. Designed for high secondary current and continuous smelting duty, these transformers are available for custom design, OEM supply, and direct purchase.

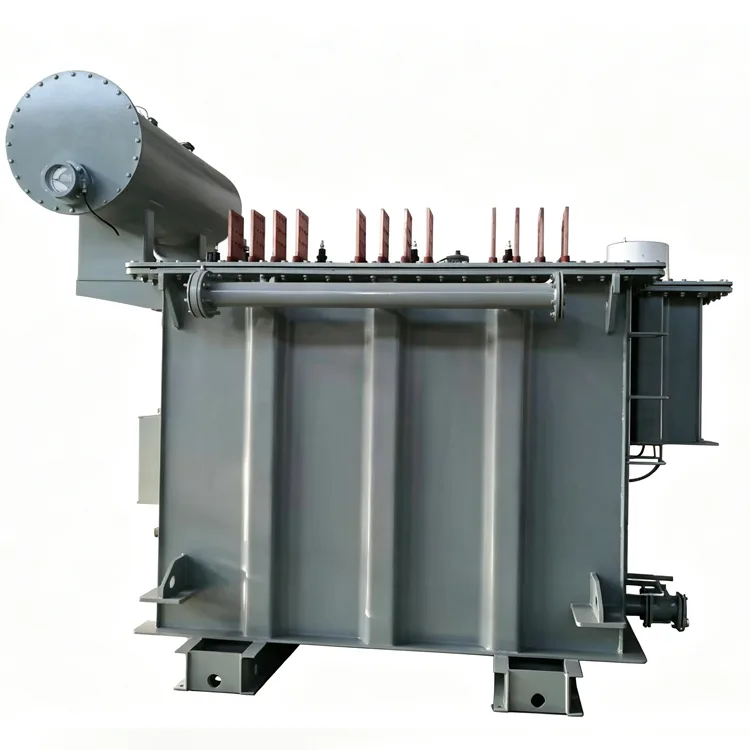

Refining Furnace Transformer
For steel secondary refining processes, Yulan Transformer offers refining furnace transformers with rated capacities ranging from 1,000 to 80,000 kVA. This product series is engineered for precise voltage control, frequent tap-changing, and high-current furnace operations, with configurations customizable to specific process requirements. Please contact us to request a quote, inquire about purchasing, or order a custom transformer.

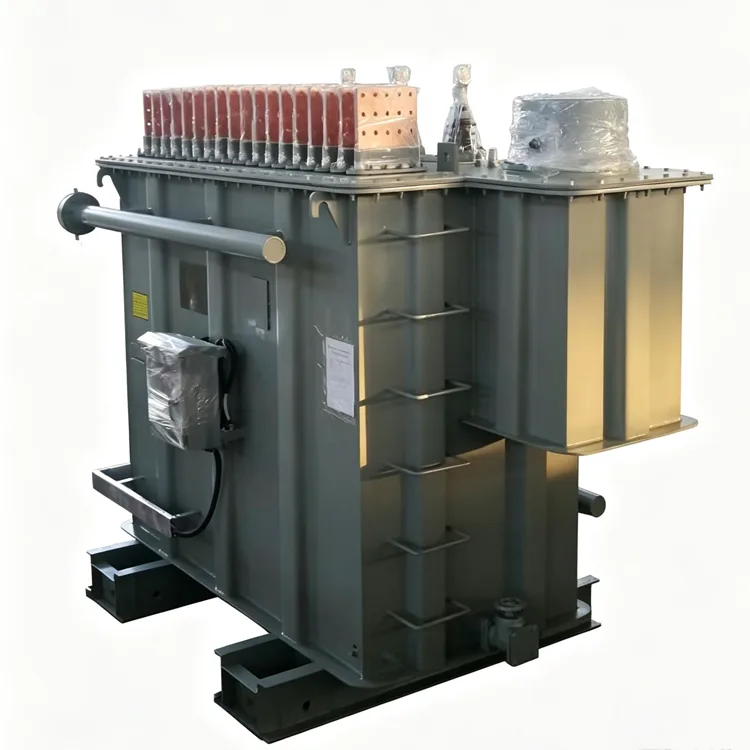

Refining Electric Furnace Transformer
Yulan Transformer supplies Refining Electric Furnace Transformers suitable for ladle refining and VD/VOD stations. These transformers feature capacities ranging from 1,000 to 80,000 kVA and voltage ratings of 6–110 kV, equipped with 5–19 tap positions and On-Load Tap Changer (OLTC) functionality; cooling methods include ONAN or OFWF. The company offers customized designs and short-network matching services; please contact us for project-specific design proposals, quotations, or outline dimension drawings.
Yulan Transformer has an experienced sales team, technical engineers and after-sales support. From inquiry to delivery, we help buyers purchase suitable Special Purpose Transformers with confidence.
