Heavy-Duty Power Transformers For High-Voltage Power Transmission And Substation Applications
Yulan Transformer manufactures oil-immersed power transformers for generation, transmission, and distribution applications, covering voltage classes from 35kV to 110kV and single-unit capacities up to 120,000 kVA (120 MVA). Our power transformers are engineered to IEC 60076 standards and deployed in utility substations, industrial plants, and renewable energy projects across China and international markets.
Voltage classifications we supply include: distribution-class power transformers (35kV and below) for industrial and commercial power supply, medium-voltage power transformers (35kV–69kV) for regional substations, and high-voltage power transformers (69kV–110kV) for transmission network step-down and step-up applications.
Core design features: Our power transformers are available with ONAN, ONAF, and OFAF cooling configurations, with or without on-load tap changers (OLTC), and with copper or aluminum windings depending on project requirements. Core construction uses high-grade silicon steel with step-lap mitered joints to minimize no-load losses. Winding insulation systems are designed and tested for the full 1200kV impulse withstand level.
Quality and testing: Every power transformer manufactured at Yulan undergoes routine tests including ratio, polarity, impedance, no-load loss, load loss, and dielectric tests. Our test bay includes a 1200kV impulse test system, 400kV partial discharge free power frequency withstand voltage test transformer, and 300kV induction test generator set. Products are also submitted for type testing at the National Transformer Product Testing Center of China.
For reactive power compensation and voltage regulation in conjunction with power transformers, we also supply magnetically controlled reactors and special purpose transformers for furnace and rectifier applications.
Frequently Asked Questions
What is the maximum voltage class and capacity of Yulan power transformers?
Yulan Transformer manufactures power transformers up to 110kV class with single-unit capacity reaching 120,000 kVA (120 MVA).
Do your power transformers comply with IEC standards?
Yes, all power transformers are designed and tested to IEC 60076 and applicable IEEE C57 standards.
Can you provide power transformers with on-load tap changers?
Yes. We supply power transformers with or without on-load tap changers (OLTC), depending on voltage regulation requirements for each project.
| Parameter | Range |
|---|---|
| Voltage Class | 35kV – 110kV |
| Single-Unit Capacity | Up to 120,000 kVA |
| Cooling Method | ONAN / ONAF / OFAF |
| Tap Changer | Off-Circuit / On-Load (OLTC) |
| Winding Material | Copper / Aluminum |
| Standards | IEC 60076, IEEE C57 |
- View as

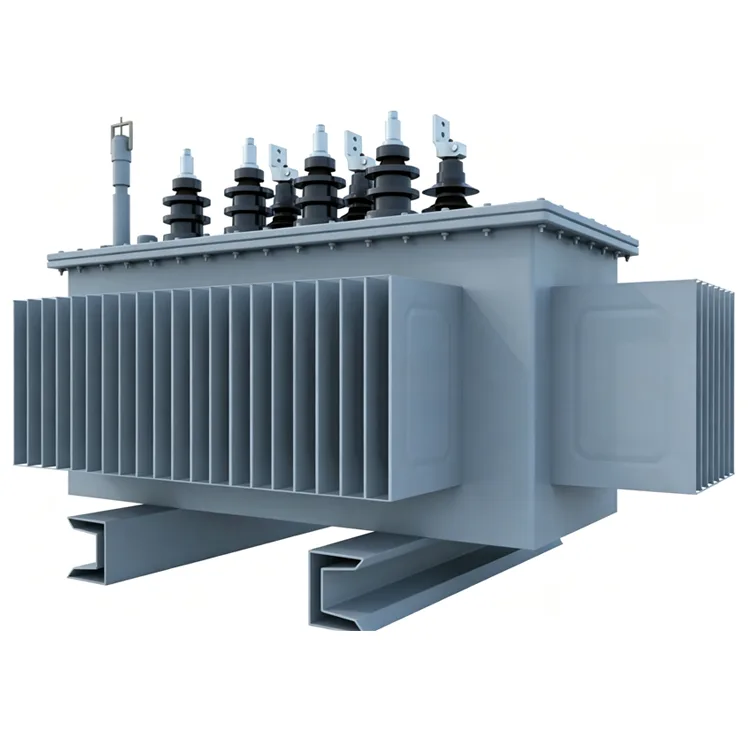

10kV Amorphous Alloy Oil-Immersed Distribution Transformer
Yulan Transformer’s 10KV Amorphous alloy oil-immersed distribution Transformer covers 30‑2500kVA, supporting 6kV/10kV/35kV primary and 0.4kV secondary voltage, compliant with IEC, GB, ANSI/IEEE, NEMA standards. All units pass complete routine tests under ISO‑certified production, with off‑circuit tap‑changing, ONAN cooling and traceable batch records for reliable field deployment.

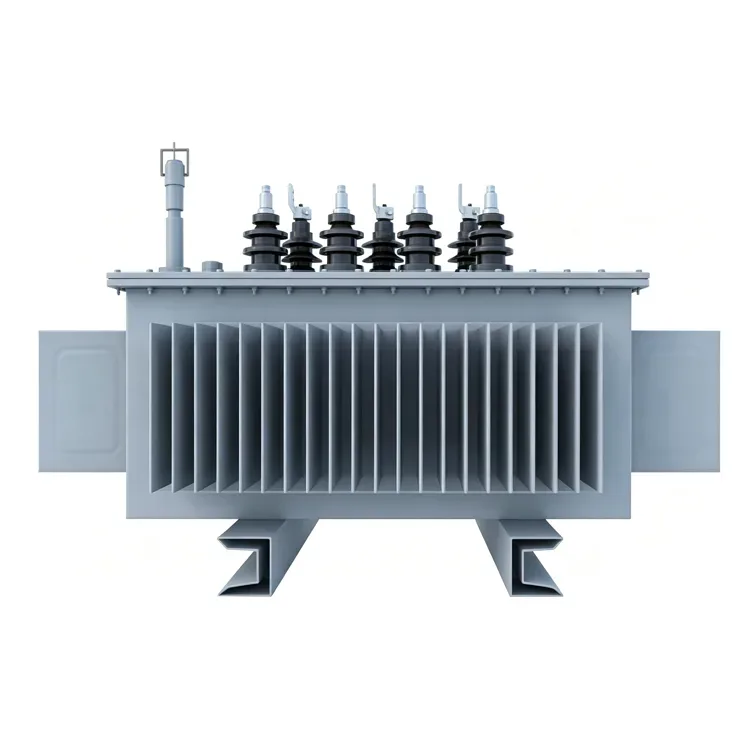

Oil-Immersed Amorphous Alloy Distribution Transformer
The 10kV Oil-Immersed Amorphous Alloy Distribution Transformer from Yulan Transformer is designed for high-efficiency medium-voltage power distribution. It features a 3D wound core structure and offers a capacity range of 30 to 2,500 kVA. Its seamless core design helps reduce no-load losses and operational noise, making it suitable for applications in power grids, as well as industrial and commercial sectors. We welcome inquiries regarding procurement, ordering, or customization for your projects.

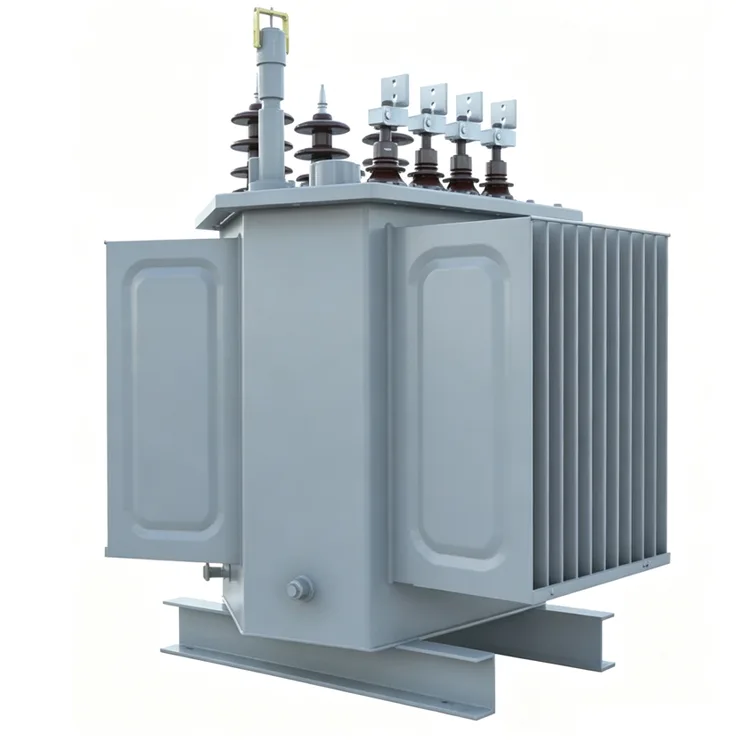

10kV Oil-Immersed Distribution Transformer With 3d Wound Core
Yulan Transformer manufactures 10kV oil-immersed distribution transformers with three-dimensional wound cores, featuring rated capacities ranging from 30 kVA to 2,500 kVA. These10KV Oil-immersed distribution transformer with 3D wound core offers advantages such as low no-load losses and noise levels reduced by 3–5 dB, making them suitable for power grid, industrial, and commercial distribution applications. We welcome inquiries regarding procurement, ordering, or specification of this model for your projects.

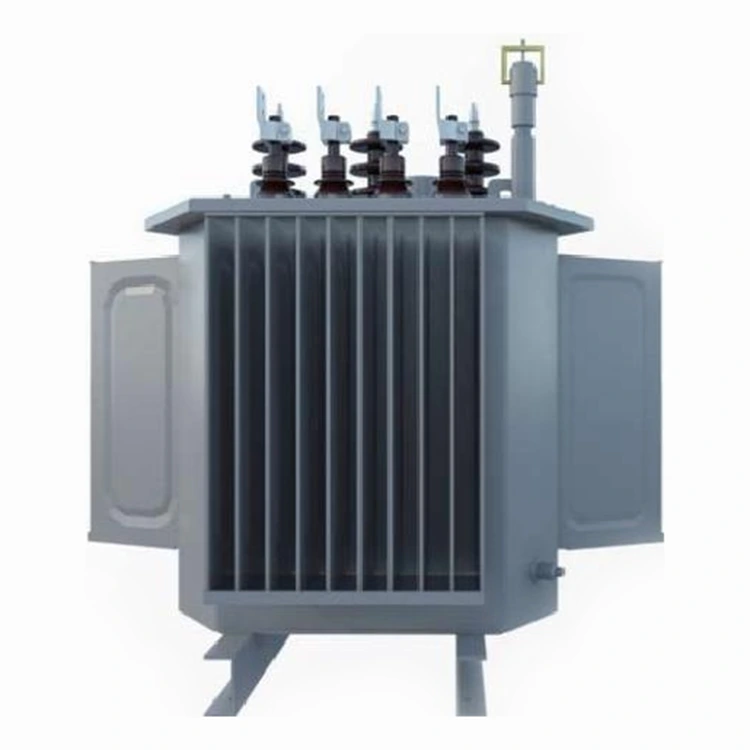

Oil-Immersed Three-Dimensional Wound Core Distribution Transformer
Yulan Oil-Immersed Three-Dimensional Wound Core Distribution Transformers adopt advanced three‑dimensional wound core construction. Covering rated capacities from 30 kVA up to 2500 kVA, the units support primary input voltages of 6 kV, 10 kV and 35 kV, paired with a 0.4 kV secondary output. Feel free to reach out for product enquiries, quotation comparisons and purchase orders.

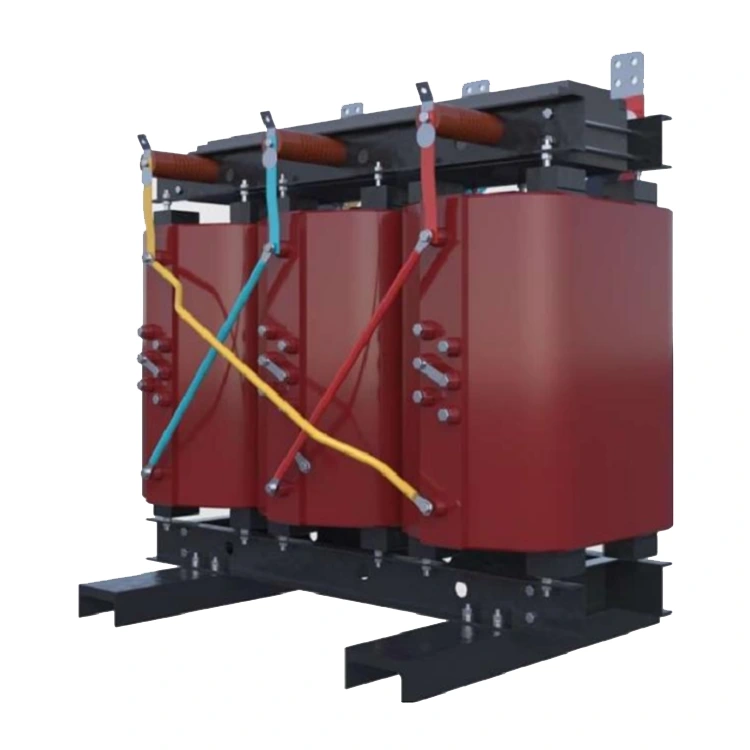

10kV Epoxy Resin Cast Dry-Type Transformer
Yulan Transformer manufactures 10kV Epoxy Resin Cast Dry-Type Transformers with capacities ranging from 30 kVA to 2500 kVA; primary voltage options include 6 kV, 10 kV, or 35 kV, while the secondary output voltage is 0.4 kV. As a manufacturer and supplier of dry-type transformers, Yulan provides customized solutions for insulation, cooling, and enclosure configurations to meet power distribution needs across commercial, industrial, and infrastructure sectors.

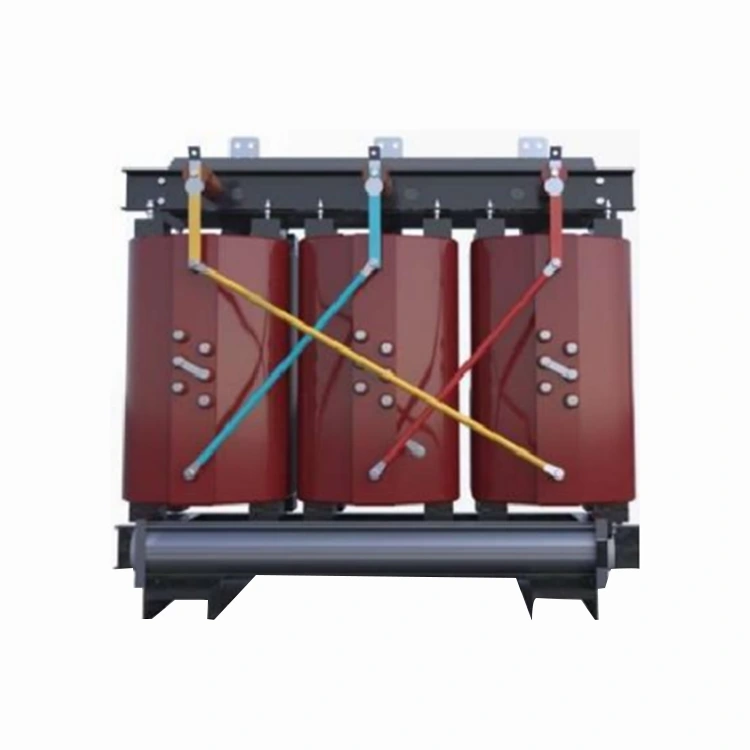

Epoxy Resin Cast Dry-Type Power Transformer
Yulan Transformer’s Epoxy Resin Cast Dry-Type Power Transformers are specifically designed for buildings, airports, tunnels, chemical plants, and other locations with strict fire safety requirements, ensuring safe and reliable power distribution. This product series offers capacities ranging from 30 to 2,500 kVA, with input voltage options of 6 kV, 10 kV, or 35 kV. As an experienced manufacturer and supplier, Yulan Transformer provides customized configuration solutions.
Yulan Transformer has an experienced sales team, technical engineers and after-sales support. From inquiry to delivery, we help buyers purchase suitable Power Transformers with confidence.
