10kV Epoxy Resin Cast Dry-Type Transformer
  • 10kV Epoxy Resin Cast Dry-Type Transformer10kV Epoxy Resin Cast Dry-Type Transformer
  • 10kV Epoxy Resin Cast Dry-Type Transformer10kV Epoxy Resin Cast Dry-Type Transformer

10kV Epoxy Resin Cast Dry-Type Transformer

Yulan Transformer manufactures 10kV Epoxy Resin Cast Dry-Type Transformers with capacities ranging from 30 kVA to 2500 kVA; primary voltage options include 6 kV, 10 kV, or 35 kV, while the secondary output voltage is 0.4 kV. As a manufacturer and supplier of dry-type transformers, Yulan provides customized solutions for insulation, cooling, and enclosure configurations to meet power distribution needs across commercial, industrial, and infrastructure sectors.

In power distribution systems, 10kV Epoxy Resin Cast Dry-Type Transformers are often the preferred choice when installation space is limited, fire safety requirements are stringent, or the use of oil-based media must be avoided. Yulan Transformer manufactures a series ranging from 30 kVA to 2500 kVA, featuring primary voltage inputs of 6 kV, 10 kV, or 35 kV and a secondary output of 0.4 kV. The windings are produced using a vacuum casting process, with insulation classes available in B, F, or H; users may opt for a protective enclosure based on site conditions.



This type of equipment is commonly found in high-rise buildings, commercial complexes, airports, rail transit stations, tunnels, chemical plants, and auxiliary systems for nuclear power stations. While the open-type structure is suitable for dedicated distribution rooms, enclosures with IP20, IP23, or higher ratings are recommended for public areas or locations requiring higher levels of protection.


Design and Manufacturing Highlights

The core is constructed from cold-rolled grain-oriented silicon steel sheets. Stacking is performed by fully automated equipment, ensuring that burr dimensions and the lamination stacking factor remain within controlled limits. Compared to manual stacking, this process reduces no-load losses by 5% to 10% and improves no-load current and noise performance.

High- and low-voltage windings are cast in epoxy resin under vacuum, forming an integral insulation layer upon curing. This structure offers high mechanical strength, enabling the transformer to withstand short-circuit electromagnetic forces. Additionally, partial discharge levels are kept below 5 pC, helping to mitigate the risk of insulation aging during long-term operation.

Insulation classes are directly linked to temperature rise: Class B corresponds to an average temperature rise of 100°C, Class F to 120°C, and Class H to 145°C. Selection should be based on a comprehensive assessment of ambient temperature, load profiles, and enclosure ventilation conditions.

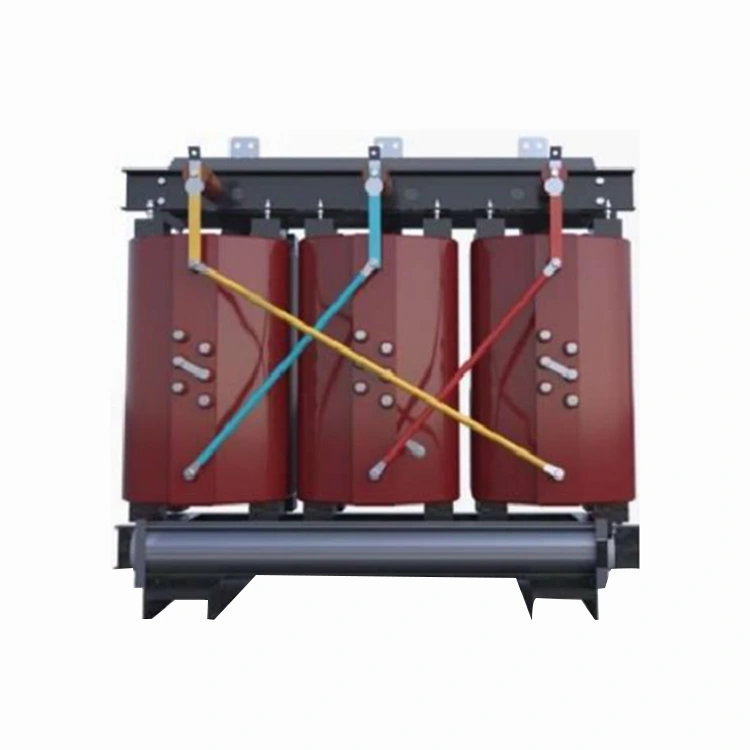

10kv Cast-Resin Dry-Type Power Transformer


Technical Specifications

Item

Standards

Executive Standard

IEC, GB, ANSI/IEEE, NEMA

Rated Capacity

30 kVA to 2500 kVA

Primary Rated Voltage

6 kV, 10 kV, 35 kV (depending on model)

Secondary Rated Voltage

0.4 kV

Number of Taps

5 taps (off-circuit tap changing)

Rated Frequency

50 Hz / 60 Hz

Number of Phases

Three-phase

Vector Group

Dyn11, Yyn0, etc.

Short-circuit Impedance

4.0% / 6.0% (varies by capacity)

Insulation Class

Class B, F, or H (optional)

Cooling Method

AN or AF

Protective Enclosure

Optional; customizable IP rating


Reference for Energy Efficiency and Losses

The following data applies to electrical steel strip cores and complies with the minimum energy efficiency requirements of GB 20052-2020. Load losses in the table are listed based on Class F (120°C) insulation; values for Class B and Class H differ slightly.



Rated capacity

KVA

Level 1

Level2

Level3

Short-circuit impedance %

Electrical steel strip

Electrical steel strip

Electrical steel strip

No-load loss

W

Load loss

W

No-load loss

w

Load loss

W

No-load loss

W

Load loss

W

B

(100℃)

 F

(120℃)

H

(145℃)

B

(100℃)

F

(120℃)

 H

(145℃)

B

(100℃)

 F

(120℃)

H

(145℃)

30

105

605

640

685

130

605

640

685

150

670

710

760

4.0

50

155

845

900

965

185

845

900

965

215

940

1000

1070

80

210

1160

1240

1330

250

1160

1240

1330

295

1290

1380

1480

100

230

1330

1415

1520

270

1330

1415

1520

320

1480

1570

1690

125

270

1565

1665

1780

320

1565

1665

1780

375

1740

1850

1980

160

310

1800

1915

2050

365

1800

1915

2050

430

2000

2130

2280

200

360

2135

2275

2440

420

2135

2275

2440

495

2370

2530

2710

250

415

2330

2485

2665

490

2330

2485

2665

575

2590

2760

2960

345

510

2945

3125

3355

600

2945

3125

3355

705

3270

3470

3730

400

570

3375

3590

3850

665

3375

3590

3850

785

3750

3990

4280

500

670

4130

4390

4705

790

4130

4390

4705

930

4890

4880

5230

630

775

4975

5290

5660

910

4975

5290

5660

1070

5530

5880

6290

630

750

5050

5365

5760

885

5050

5365

5760

1040

5610

5960

6400

6.0

800

875

5895

6265

6715

1035

5895

6265

6715

1215

6550

6960

7490

1000

1020

6885

7315

7885

1205

6885

7315

7885

1415

7650

8130

8760

1250

1205

8190

8720

9335

1420

8190

8720

9335

16770

9100

9690

10370

1600

1415

9945

10555

11320

1665

9945

1055

11320

1960

11050

11730

12580

2000

1760

12240

13005

14005

2075

12240

13005

14005

2440

13600

14450

15560

2500

2080

14535

15445

16605

2450

14535

15445

16605

2880

16150

17170

18450

Note: Load losses for Class B are approximately 5% to 8% lower than the baseline, while those for Class H are approximately 6% to 9% higher. Final values are subject to the technical agreement specified at the time of order.

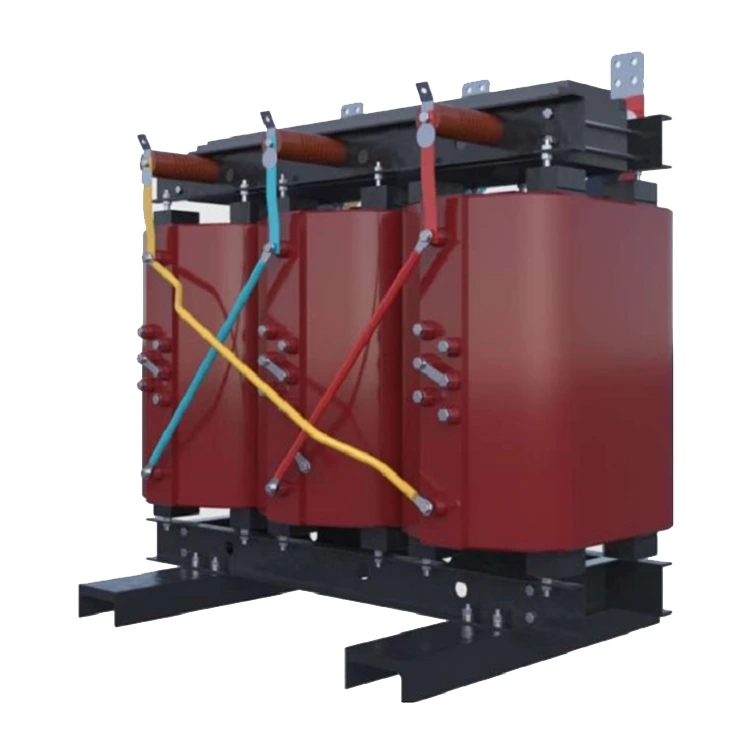

10kv Cast-Resin Dry-Type Power Transformer


Production and Testing

Before leaving the factory, each unit undergoes tests including winding DC resistance, voltage ratio, insulation resistance, power-frequency withstand voltage, induced withstand voltage, no-load loss, load loss, short-circuit impedance, and partial discharge. Partial discharge testing is conducted in accordance with GB/T 7354 or IEC 60270, with measured values not exceeding 5 pC. The company holds ISO 9001:2015, ISO 14001, and ISO 45001 certifications.


Selection Guide

Q: What is the difference between open-type and enclosed (cased) dry-type transformers?

Open-type structures offer superior heat dissipation and are suitable for installation in dedicated distribution rooms where there is no risk of direct contact. Enclosed units provide a higher degree of protection but may restrict ventilation, potentially requiring capacity derating. Enclosure materials and the placement of air inlets/outlets should be determined based on the specific site environment.

Q: How do I decide between Class B and Class F insulation?

The choice depends primarily on ambient temperature and load conditions. Class B is suitable for applications with lower temperatures and stable loads. Class F is the standard choice for most indoor distribution rooms. Class H is recommended for environments with high ambient temperatures or potential short-term overloads, though this entails higher costs and larger dimensions.

Q: What is the significance of a partial discharge level below 5 pC for actual operation?

Low partial discharge indicates minimal air bubbles and impurities within the cast insulation, resulting in a dense insulation structure. During long-term operation, low partial discharge reduces insulation aging and the probability of sudden failure—a critical factor for locations requiring high power supply continuity.

Q: Can the unit be used directly in a 60 Hz system?

No; the core magnetic flux density and winding parameters must be redesigned for 60 Hz operation. 50 Hz units cannot be used directly. The frequency must be specified at the time of order, and loss and temperature rise will be verified against the specified frequency before shipment.

Q: How should the enclosure protection rating be selected?

An IP20 rating prevents the entry of foreign objects larger than 12 mm and is suitable for general indoor installations. IP23-rated units offer protection against dripping water, making them suitable for locations where exposure to water droplets is possible. Ratings of IP31 and above are intended for environments with high dust levels or stricter operational requirements. After selecting an enclosure, heat dissipation must be verified; if necessary, the unit capacity should be increased, or forced-air cooling added.


Installation and Operation Guidelines

Dry-type transformers should be installed in well-ventilated areas free from corrosive gases and conductive dust. When operating with an enclosure, air inlets and outlets must not be obstructed. Before restarting the unit after a prolonged shutdown, it is recommended to check the insulation resistance and verify that the ventilation system is functioning correctly. For installations in high-humidity or coastal regions, anti-rust treatment may be applied to the transformer core and external metal components.

Please contact the Yulan Transformer sales or technical department for dimensional drawings, foundation installation diagrams, or information regarding enclosure selection.
